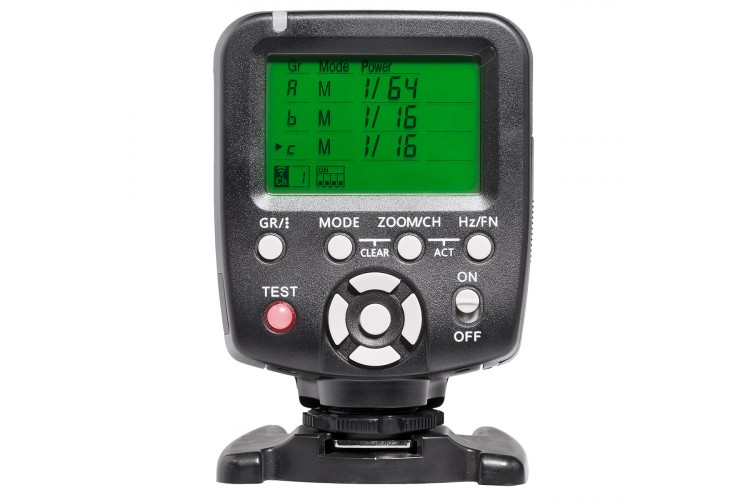

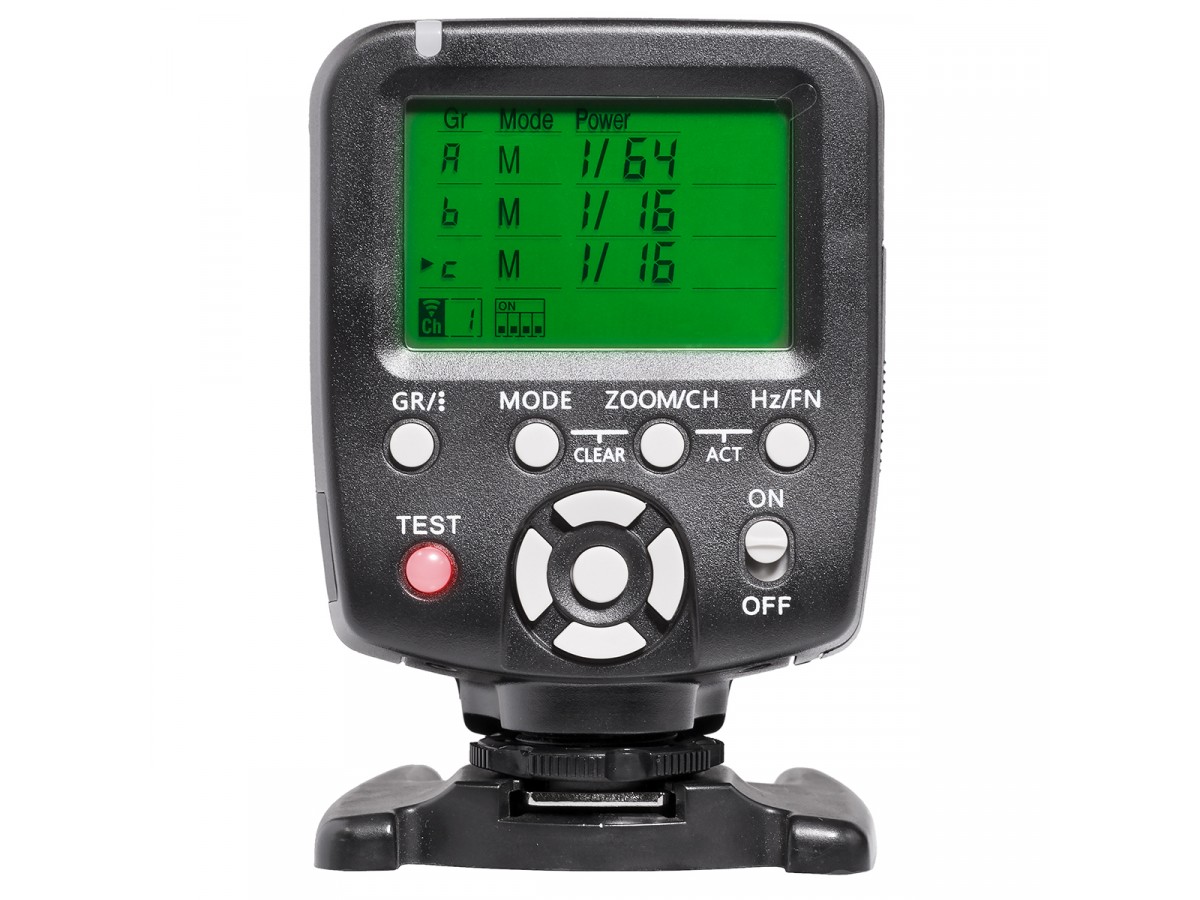

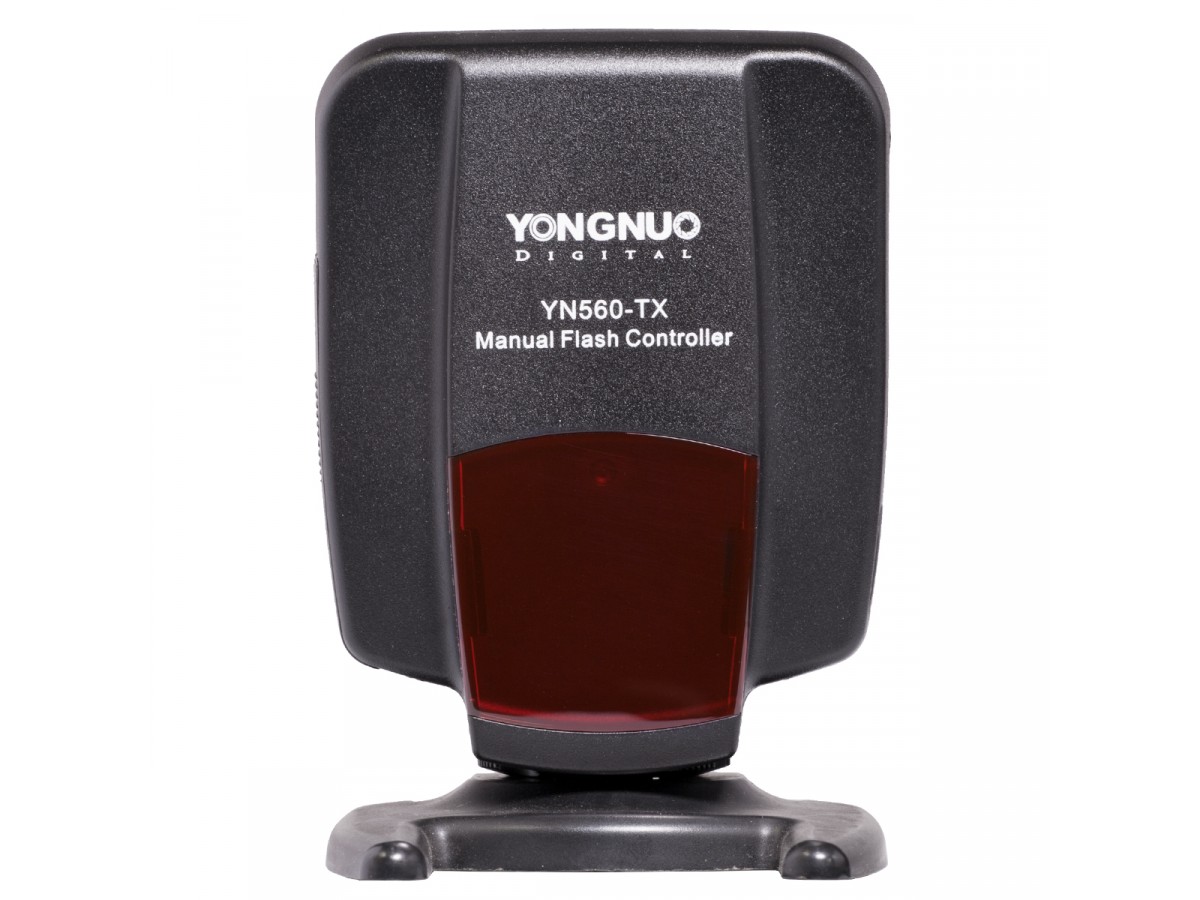

OCF flash controller YN560-TX for Canon

YN560-TX is a remote RF controller that can trigger OCF strobes at a distance of up to 100 meters. It can control up to 6 groups of lights in both M and MULTI modes. Depending on the types of flashes used, it can only trigger them, or also remotely adjust power level and zoom.

The YN560-TX is compatible with the following triggers and flashes:

• series RF602 triggers
• series RF603/RF603-II triggers
• YN560 Mark III and YN560 Mark IV OCF flashes
• YN660 OCF flashes

YN560-TX gives strobists the easiest possible way to control their manual flashes. Depending on the types of receivers used, the YN560-TX can control various parameters and activities, as summarized below:

* This will work only on YN622 receivers manufactured after December 15, 2014. In order to enable manual trigger mode for these, hold down the CH button while turning on the receiver. The status LED will light in orange to confirm this special mode is enabled.

The YN560-TX version labeled "for Canon" has nothing special about it except that when put on a Canon camera, it will detect a half-press of the shutter button and will wake up flashes that have entered power-saving mode. Other than that, the YN560-TX can be used on any camera that has a standard ISO hot shoe mount.
